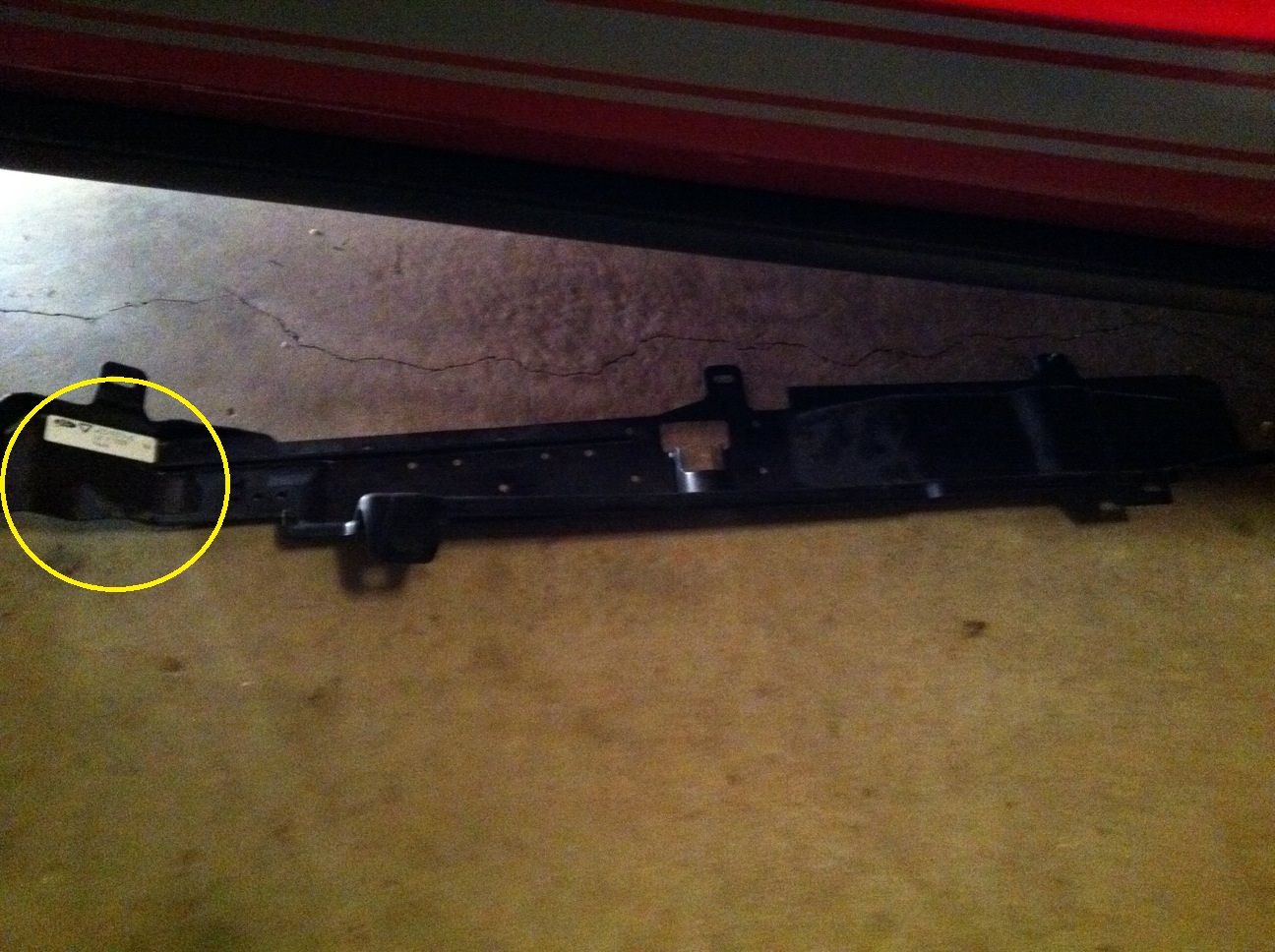

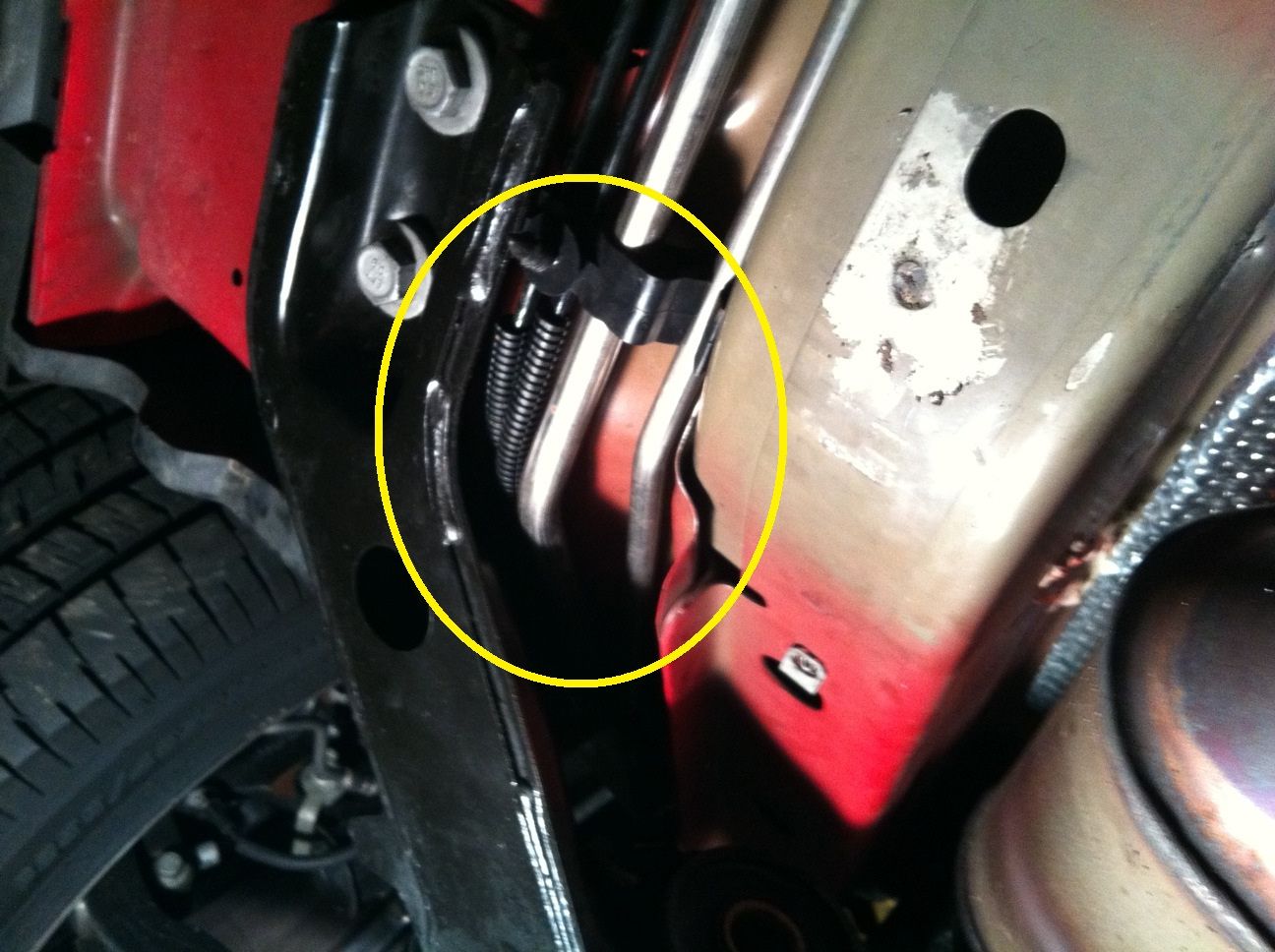

09KR0058 Posted November 18, 2010 Report Share Posted November 18, 2010 First, I'm not sure if this is even called a "skid plate". Directly under the door sill (where we're putting those sweet new sill plates), on the bottom of the car, there is a long plastic piece that covers some plumbing and what looks like an inline fuel filter. A couple of months ago, I was pulling out of a parking lot, up a hill. As I came over the hill, the bottom of the car scraped on the concrete. Only some minor scratches on the body, but that plastic skid plate got tore up pretty good. Now that I have my RaceRamps, I bought the replacement piece. Here's a shot of it: There are two bolts and two nuts that hold it on the body. The old one came off fairly easy, but I can't figure out how to get the new one on. The front piece of it (circled above) has to go in the area circled below. This picture was taken from the ground, at a slight angle, looking up: I spent a couple of hours under the car trying to get this installed, but I just can't figure out what the trick is. Hopefully, someone here has been through this before. I'd hate to have to go to the dealer with the part and the 2 nuts/2 bolts and have them charge me to put it back in. BTW, where would I get a shop manual for the car? And do you think it would cover how to do this? Thanks Link to comment Share on other sites More sharing options...
09KR0058 Posted November 18, 2010 Author Report Share Posted November 18, 2010 Wow. 54 views on this message and no answers? Did I actually stump everyone here? :shades: I ordered the full Helm manuals on CD today. Hopefully I can find the answer there. Been meaning to order them anyway, so this gave me a great reason. If the manual doesn't show the procedure, I guess I'm off to the dealership with my tail between my legs. Link to comment Share on other sites More sharing options...
twicebitten Posted November 19, 2010 Report Share Posted November 19, 2010 man i never done that .i have to crawl under mind just to see what your talking about. Link to comment Share on other sites More sharing options...
FiaCobra Posted November 19, 2010 Report Share Posted November 19, 2010 Did you place the two parts (old and new) side by side and take a good look? Perhaps you mixed the left and right sides up? Link to comment Share on other sites More sharing options...
09KR0058 Posted November 19, 2010 Author Report Share Posted November 19, 2010 Did you place the two parts (old and new) side by side and take a good look? Perhaps you mixed the left and right sides up? Yep, been there done that. I even put one on top of the other to be sure everything lined up. Its definitely the right part. Link to comment Share on other sites More sharing options...
BlackShelby Posted November 20, 2010 Report Share Posted November 20, 2010 Yep, been there done that. I even put one on top of the other to be sure everything lined up. Its definitely the right part. See if this helps Scan_Doc0001.pdf Scan_Doc0001.pdf Link to comment Share on other sites More sharing options...
BlackShelby Posted November 20, 2010 Report Share Posted November 20, 2010 See if this helps Scan_Doc0002.pdf Scan_Doc0002.pdf Link to comment Share on other sites More sharing options...
BlackShelby Posted November 20, 2010 Report Share Posted November 20, 2010 See if this helps Scan_Doc0003.pdf Scan_Doc0003.pdf Link to comment Share on other sites More sharing options...
09KR0058 Posted November 21, 2010 Author Report Share Posted November 21, 2010 Thanks BlackShelby! I got my Helm manual DVD yesterday and starting pouring through it. Which manual does those scans come from? They seem to be just about the same. So, the part is actually called the "Fuel tube bundle shield". In the Helm manual, as part of the procedure, you are supposed to remove the LH front fender splash shield. I'm attaching the page from the manual for that. Once I read that, then it all made sense. It will make the install of the fuel tube bundle shield much easier, but now I have to remove the wheel, then the splash shield first. I'll also attach the appropriate pages from the Helm manual. Anyone that needs to change their inline fuel filter could use these instructions. Link to comment Share on other sites More sharing options...
09KR0058 Posted November 21, 2010 Author Report Share Posted November 21, 2010 FrontFenderSplashShieldRnI.pdf FuelLinesAndFuelFilterExplodedView.pdf FuelLinesRnI.pdf FrontFenderSplashShieldRnI.pdf FuelLinesAndFuelFilterExplodedView.pdf FuelLinesRnI.pdf Link to comment Share on other sites More sharing options...
BlackShelby Posted November 21, 2010 Report Share Posted November 21, 2010 Thanks BlackShelby! I got my Helm manual DVD yesterday and starting pouring through it. Which manual does those scans come from? They seem to be just about the same. So, the part is actually called the "Fuel tube bundle shield". In the Helm manual, as part of the procedure, you are supposed to remove the LH front fender splash shield. I'm attaching the page from the manual for that. Once I read that, then it all made sense. It will make the install of the fuel tube bundle shield much easier, but now I have to remove the wheel, then the splash shield first. I'll also attach the appropriate pages from the Helm manual. Anyone that needs to change their inline fuel filter could use these instructions. Ford Workshop Manual.(which is printed by Helm) Link to comment Share on other sites More sharing options...
09KR0058 Posted November 22, 2010 Author Report Share Posted November 22, 2010 Update: It wasn't necessary to remove the tire and the entire splash shield. Just pull the two front rocker panel pin-type retainers, and the first few pin-type retainers on the front-bottom side of the rocker panel. Then you can pull the front of the rocker panel down far enough to pull the splash sheld out just enough to get the front of the fuel tube bundle shield up and into place. Link to comment Share on other sites More sharing options...
mummgt500kr Posted November 25, 2010 Report Share Posted November 25, 2010 Wow. 54 views on this message and no answers? Did I actually stump everyone here? :shades: I ordered the full Helm manuals on CD today. Hopefully I can find the answer there. Been meaning to order them anyway, so this gave me a great reason. If the manual doesn't show the procedure, I guess I'm off to the dealership with my tail between my legs. Link to comment Share on other sites More sharing options...
2010KonaBlueGT Posted December 1, 2010 Report Share Posted December 1, 2010 Update: It wasn't necessary to remove the tire and the entire splash shield. Just pull the two front rocker panel pin-type retainers, and the first few pin-type retainers on the front-bottom side of the rocker panel. Then you can pull the front of the rocker panel down far enough to pull the splash sheld out just enough to get the front of the fuel tube bundle shield up and into place. Ya know, I was gonna say....I slid under my car and took a look at your project and it really didn't *look* all that hard. But then again, I didn't R&R it either. Glad you figured it out, Phill Link to comment Share on other sites More sharing options...
