johnrehder Posted September 27, 2008 Report Share Posted September 27, 2008 Hey folks, I just installed the hood strut kit on my 2008 Shelby Gt. No instructions were included but I think I have them installed correctly. The only problem is that they do not hold the hood up. Is there an adjustment on the cylinder? Could someone post a photo of thier install just to be sure I have it right? Thanks all! John Link to comment Share on other sites More sharing options...
69dejavue Posted September 27, 2008 Report Share Posted September 27, 2008 Hey folks,I just installed the hood strut kit on my 2008 Shelby Gt. No instructions were included but I think I have them installed correctly. The only problem is that they do not hold the hood up. Is there an adjustment on the cylinder? Could someone post a photo of thier install just to be sure I have it right? Thanks all! John John, the August issue of Mustang Monthly had a good article with photos and step by step instuctions for installing the lift kit. Is the cylinder up and the shaft down on your installation? Link to comment Share on other sites More sharing options...
ilmor Posted September 27, 2008 Report Share Posted September 27, 2008 Whose strut kit did you install? Link to comment Share on other sites More sharing options...

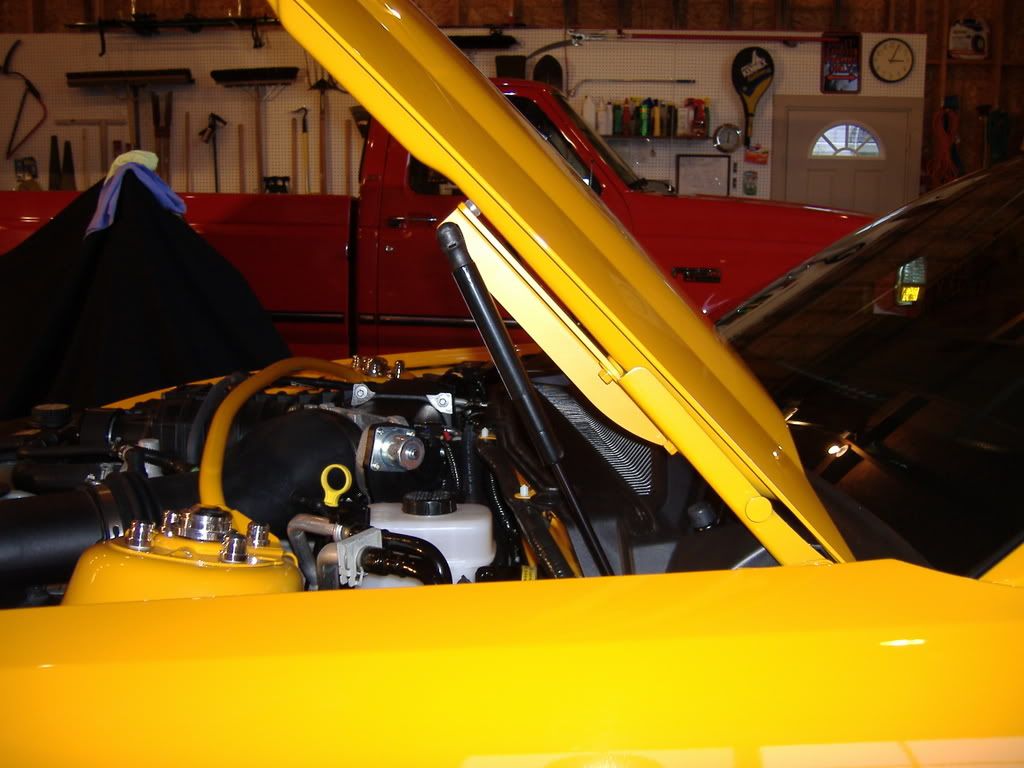

Grabber Posted September 27, 2008 Report Share Posted September 27, 2008 Here's some pic's of both cars with some instructions to. These are the Steeda ones. Link to comment Share on other sites More sharing options...
johnrehder Posted September 27, 2008 Author Report Share Posted September 27, 2008 I installed the kit from Shelby parts. The Scott Drake kit. Whose strut kit did you install? Link to comment Share on other sites More sharing options...
johnrehder Posted September 27, 2008 Author Report Share Posted September 27, 2008 I think I have cyclinder down, Guess I'll reverse it and see if it makes a difference. Thanks John, the August issue of Mustang Monthly had a good article with photos and step by step instuctions for installing the lift kit. Is the cylinder up and the shaft down on your installation? Link to comment Share on other sites More sharing options...
johnrehder Posted September 27, 2008 Author Report Share Posted September 27, 2008 I just reversed the cylinders and it made no difference. Hood still falls slowly back down. I think I have cyclinder down, Guess I'll reverse it and see if it makes a difference.Thanks Link to comment Share on other sites More sharing options...
Grabber Posted September 27, 2008 Report Share Posted September 27, 2008 I just reversed the cylinders and it made no difference. Hood still falls slowly back down.The cylinders are bad. Send them back. Link to comment Share on other sites More sharing options...
GT500-07 Posted September 27, 2008 Report Share Posted September 27, 2008 Replace the cylinders/strut with these, they are stronger and better. A few of us have the Steeda kit with aftermarket hoods and these struts work perfect. Snap right in place. Enidine Corp. (716) 662- 1900 GSML35150 8 x 18 91mm stroke 670N F Master Lift Carbon Steel Gas Spg Link to comment Share on other sites More sharing options...
ingram4868 Posted September 27, 2008 Report Share Posted September 27, 2008 Replace the cylinders/strut with these, they are stronger and better. A few of us have the Steeda kit with aftermarket hoods and these struts work perfect. Snap right in place. Enidine Corp. (716) 662- 1900 GSML35150 8 x 18 91mm stroke 670N F Master Lift Carbon Steel Gas Spg :happy feet: Link to comment Share on other sites More sharing options...
6-Speed Posted September 27, 2008 Report Share Posted September 27, 2008 The cylinders are bad. Send them back. +1; one or more struts are bad if they cannot hold up a stock hood. Call the vendor and get a replacement kit; you should not have to purchase another brand of struts, plus your struts have a chromed or stainless finish. Link to comment Share on other sites More sharing options...
6-Speed Posted September 27, 2008 Report Share Posted September 27, 2008 Hey folks,I just installed the hood strut kit on my 2008 Shelby Gt. No instructions were included but I think I have them installed correctly. The only problem is that they do not hold the hood up. Is there an adjustment on the cylinder? Could someone post a photo of thier install just to be sure I have it right? Thanks all! John I don't know why SPP doesn't include instructions with their kit - afterall it is available. You can download a copy from the first post in this link: http://forum.teamshelby.com/forums/index.p...mp;#entry352471 Link to comment Share on other sites More sharing options...
johnrehder Posted September 27, 2008 Author Report Share Posted September 27, 2008 Thanks guys, I sent an email to Shelby parts. I would rather have replacements first. +1; one or more struts are bad if they cannot hold up a stock hood. Call the vendor and get a replacement kit; you should not have to purchase another brand of struts, plus your struts have a chromed or stainless finish. Link to comment Share on other sites More sharing options...
Reino Posted September 27, 2008 Report Share Posted September 27, 2008 Thanks guys, I sent an email to Shelby parts. I would rather have replacements first. Good Luck with a reply. I emailed them about a month ago and still waiting. Might want to call. Link to comment Share on other sites More sharing options...
RmGardner Posted September 29, 2008 Report Share Posted September 29, 2008 I just recieved my Hood Strut kid Friday last week after being on B.O for 2 mo. Had to call to get instrustions. They emailed them to me. The article in Muistang Monthly said to mount with shaft down. Shelby shows shaft up. Struts are set up to work in different ways. Link to comment Share on other sites More sharing options...
IASHELBYGT Posted September 29, 2008 Report Share Posted September 29, 2008 Thanks guys, I sent an email to Shelby parts. I would rather have replacements first. I assume you have the stock hood. The Shelby hood lifts will not work on the CS6/8 hood...too heavy. Dave Link to comment Share on other sites More sharing options...
johnrehder Posted September 30, 2008 Author Report Share Posted September 30, 2008 I have the stock Shelby GT hood with the scoop. I assume you have the stock hood. The Shelby hood lifts will not work on the CS6/8 hood...too heavy.Dave Link to comment Share on other sites More sharing options...
johnrehder Posted October 2, 2008 Author Report Share Posted October 2, 2008 :happy feet: Steve at Shelby parts is sending me replacement cylinders. He was very nice and accomidating. Hopefully the replacements will work so I can ditch the hood prop rod. Hey folks,I just installed the hood strut kit on my 2008 Shelby Gt. No instructions were included but I think I have them installed correctly. The only problem is that they do not hold the hood up. Is there an adjustment on the cylinder? Could someone post a photo of thier install just to be sure I have it right? Thanks all! John Link to comment Share on other sites More sharing options...
LuLu Posted October 3, 2008 Report Share Posted October 3, 2008 Replace the cylinders/strut with these, they are stronger and better. A few of us have the Steeda kit with aftermarket hoods and these struts work perfect. Snap right in place. Enidine Corp. (716) 662- 1900 GSML35150 8 x 18 91mm stroke 670N F Master Lift Carbon Steel Gas Spg I have the Scott Drake kit, bought it last year from SPP. I asked for and followed the SPP instructions for the install, and I have tried it with the gas cylinder mounted up and down. No difference, and my hood will not stay up. I don't see asking for a replacement strut from SPP as a solution. The SPP catalogue says that the strut kit is for the Mustanng GT, which has a lighter hood than the SGT. I don't think the struts failed, but may be underpowered for the task. I still use my prop rod. I called the Endine Corp. as suggested ^ there, and I was disappointed to learn that they do not sell direct to the public. I was given a vendor's number...Kiser Control in Burr Ridge Illinois...800.966.9696. The GSML35150 is the correct part number, I'll do some more checking later today. Link to comment Share on other sites More sharing options...
herpony68 Posted October 3, 2008 Report Share Posted October 3, 2008 I had hood struts on the last 2 cars-including this one. I got them from MRT and I have never had a problem. Try the ones from MRT, atleast for the shelby GT, I don't know if there is a difference in the 500 hood weight. Oh, and BTW, Hi LULU!!!! Link to comment Share on other sites More sharing options...
pottydr Posted October 3, 2008 Report Share Posted October 3, 2008 I recieved my new struts yesterday from SPP, my third set, this set was differnt from the others and it does hold the hood up, Rick Link to comment Share on other sites More sharing options...
LuLu Posted October 4, 2008 Report Share Posted October 4, 2008 I ordered two struts from Kiser Controls Co. @ 15.00 each. It will be two weeks before they arrive for testing, but I'll keep y'all up to date then. I expect them to be stiffer than the Scott Drake units. Contact Maria Gonzales, she knows what this is about. I gave her the Scott Drake sample and she speced it out. Kiser Controls Co. 7045 High Grove Blvd. Burr Ridge IL. 630.920.9171 Master Lift Carbon Steel Gas Spring Part # GSML 35150 8 X 18 91mm stroke Happy motoring! Link to comment Share on other sites More sharing options...
LuLu Posted October 23, 2008 Report Share Posted October 23, 2008 I ordered two struts from Kiser Controls Co. @ 15.00 each. It will be two weeks before they arrive for testing, but I'll keep y'all up to date then. I expect them to be stiffer than the Scott Drake units. Contact Maria Gonzales, she knows what this is about. I gave her the Scott Drake sample and she speced it out. Kiser Controls Co. 7045 High Grove Blvd. Burr Ridge IL. 630.920.9171 Master Lift Carbon Steel Gas Spring Part # GSML 35150 8 X 18 91mm stroke Happy motoring! Well...I installed my Kiser replacement struts today, and I got a hood in my face again! Yeah...In my face! Seems this strut upgrade is more than it promised to be. One strut will hold the hood open, two struts will open it for you, once the secondary hood release is activated. Step back, or, get a hood in your face, somewhere around your chin. BTW, these struts fit perfectly, and length can be adjusted if necessary. The cylinders are painted black, but I suspect they can be polished up to look even better than the SPP/Scott Drake brushed aluminum appearance. As I suggested ^ there, IMHO, the SPP/Scott Drake struts are not defective, but merely inefficient in keeping the heavier SGT hood open. I have had the SGT scoop in my hands, and it does add additional weight (maybe 20 pounds?) to the hood, and in exactly the wrong place, the fulcrum of the "see-saw". No wonder it won't stay open? Y'all with complaints of the SPP/Scott Drake kit not performing well are correct. But, I don't think it's defective parts. Rather, underpowered struts for the task. Should SPP/Scott Drake send you a replacement kit and it's not an improved version, you will still have problems. I think my 30 bucks was well spent, just remember to stand back? Link to comment Share on other sites More sharing options...
RmGardner Posted October 24, 2008 Report Share Posted October 24, 2008 I too have the Shelby struts and the fall. Think the temp has something to do with it. Warm weather they fall. Call Shelby and they said earlier ones had a proble. Mine are the later ones because I have chrome heads on them. They said they would send me a new pair though. Am going to install them this weekend. Will post later Link to comment Share on other sites More sharing options...
LuLu Posted October 25, 2008 Report Share Posted October 25, 2008 I too have the Shelby struts and the fall. Think the temp has something to do with it. Warm weather they fall. Call Shelby and they said earlier ones had a proble. Mine are the later ones because I have chrome heads on them. They said they would send me a new pair though. Am going to install them this weekend. Will post later You are welcome to my old struts, RM, if you want to give them a try. E-mail me an address and I'll drop them off. I get out to Sandwich (Lake Holiday) quite often, have family out there. Link to comment Share on other sites More sharing options...
RmGardner Posted October 25, 2008 Report Share Posted October 25, 2008 You are welcome to my old struts, RM, if you want to give them a try. E-mail me an address and I'll drop them off. I get out to Sandwich (Lake Holiday) quite often, have family out there. Hey thanks but I will give these repacements a try first Link to comment Share on other sites More sharing options...
chigl Posted November 1, 2008 Report Share Posted November 1, 2008 Well...I installed my Kiser replacement struts today, and I got a hood in my face again! Yeah...In my face! Seems this strut upgrade is more than it promised to be. One strut will hold the hood open, two struts will open it for you, once the secondary hood release is activated. Step back, or, get a hood in your face, somewhere around your chin. BTW, these struts fit perfectly, and length can be adjusted if necessary. The cylinders are painted black, but I suspect they can be polished up to look even better than the SPP/Scott Drake brushed aluminum appearance. As I suggested ^ there, IMHO, the SPP/Scott Drake struts are not defective, but merely inefficient in keeping the heavier SGT hood open. I have had the SGT scoop in my hands, and it does add additional weight (maybe 20 pounds?) to the hood, and in exactly the wrong place, the fulcrum of the "see-saw". No wonder it won't stay open? Y'all with complaints of the SPP/Scott Drake kit not performing well are correct. But, I don't think it's defective parts. Rather, underpowered struts for the task. Should SPP/Scott Drake send you a replacement kit and it's not an improved version, you will still have problems. I think my 30 bucks was well spent, just remember to stand back? Hi Lulu - Could you post pics of the struts you installed? Did the struts come with brackets and good installation instructions? Thanks! Link to comment Share on other sites More sharing options...
johnrehder Posted November 2, 2008 Author Report Share Posted November 2, 2008 Update, I did receive replacements and they hold the hood up fine. No more issues. Hood prop gone now. :happy feet: :happy feet: Steve at Shelby parts is sending me replacement cylinders. He was very nice and accomidating. Hopefully the replacements will work so I can ditch the hood prop rod. Link to comment Share on other sites More sharing options...
LuLu Posted November 3, 2008 Report Share Posted November 3, 2008 Hi Lulu - Could you post pics of the struts you installed? Did the struts come with brackets and good installation instructions? Thanks! No pics at the present time, sorry I'm not good at that. All I replaced was the gas strut with a more durable unit. Pops right into place and looks no different than the SPP/Scott Drake kit, other than they are painted black. Instructions not required. Link to comment Share on other sites More sharing options...
chigl Posted November 17, 2008 Report Share Posted November 17, 2008 No pics at the present time, sorry I'm not good at that. All I replaced was the gas strut with a more durable unit. Pops right into place and looks no different than the SPP/Scott Drake kit, other than they are painted black. Instructions not required. Thanks Lulu - I'll be ordering soon. :happy feet: Chigl Link to comment Share on other sites More sharing options...
